Delineation Diagrams

Delineation diagrams make access routes and controlled areas clear to staff and contractors. Understanding the working environment allows people to perform different tasks in close proximity.

Mallory HSC will review vehicle and personnel movements, taking into account reversing operations and PPE. Safety management structures will be created to ensure that site users are correctly co-ordinated and provided with the appropriate advice and instruction to conduct their tasks in a safe and efficient manner. Where site alteration is not achievable, addition consideration will be given to maximising pedestrian safety through good site design and appropriate management systems.

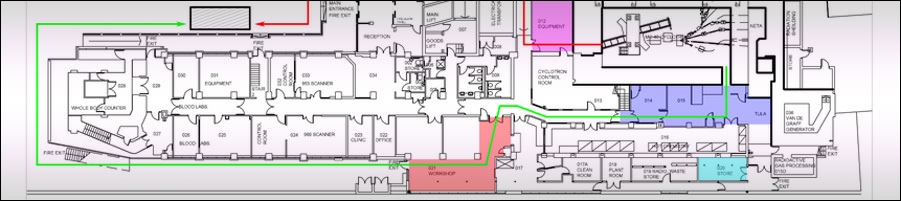

Abbott Designs take existing building plans and superimpose colour coded graphics to denote different working areas, PPE requirements and access routes. We can also produce brand new diagrams to reflect changes in building usage or internal architecture.
